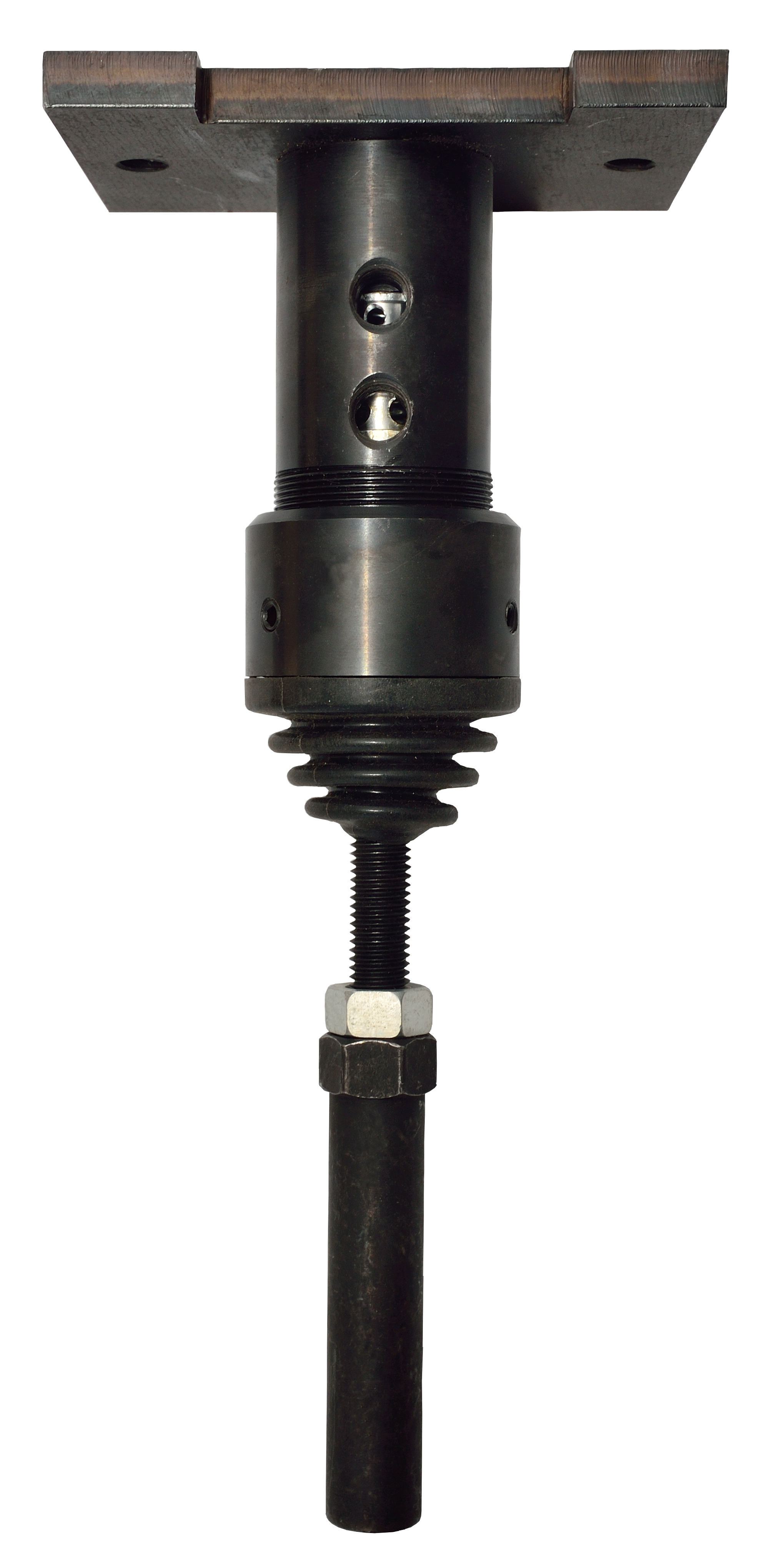

Travel limiter - 137.73.0000000

It is a device from the family of pneumatic devices and it is used to limit the travel of a moving element in order to ensure the safety of the rig.

Technical data

- working pressure:                                      10 bar
- rotation angle of the arm corresponding to the max. stroke:  13°
- piston max. stroke:                                    4 mm
- workig fluid:                                             compressed air
- connecting joints sizes:                           G ¼”
- weight:                                                       3.43 kg
